The Geometric Mechanics of Contrastive Representation Learning

Abstract

While InfoNCE powers modern contrastive learning, its geometric mechanisms remain under-characterized beyond the canonical alignment–uniformity decomposition. We present a measure-theoretic framework that models learning as the evolution of representation measures on a fixed embedding manifold. By establishing value and gradient consistency in the large-batch limit, we bridge the stochastic objective to explicit deterministic energy landscapes, uncovering a fundamental geometric bifurcation between the unimodal and multimodal regimes. In the unimodal setting, the intrinsic landscape is strictly convex with a unique Gibbs equilibrium; here, entropy acts merely as a tie-breaker, clarifying “uniformity” as a constrained expansion within the alignment basin. In contrast, the symmetric multimodal objective contains a persistent negative symmetric divergence term that remains even after kernel sharpening. We show that this term induces barrier-driven co-adaptation, enforcing a population-level modality gap as a structural geometric necessity rather than an initialization artifact. Our results shift the analytical lens from pointwise discrimination to population geometry, offering a principled basis for diagnosing and controlling distributional misalignment.

Key Contributions

📌 Prove large-batch value & gradient consistency, connecting stochastic InfoNCE to deterministic energy landscapes (Thms. 3.1, 4.1).

📌 Characterize unimodal InfoNCE as a strictly convex intrinsic functional with a unique Gibbs equilibrium; “uniformity” becomes an entropic tie-breaker within the alignment basin (Thm. 3.2; Props. 3.2–3.3).

📌 Identify a persistent negative symmetric divergence in symmetric multimodal InfoNCE that survives kernel sharpening and drives barrier-driven co-adaptation (Thm. 4.2; Prop. 4.2).

📌 Show parametric inheritance: under sufficient encoder expressiveness, learned representations inherit the intrinsic geometry (Cors. 3.1, 4.1).

Framework

We model the embedding space Z as a compact geometric container with a reference volume measure. Encoders push data distributions forward to induce representation measures and positive-pair laws, and InfoNCE becomes an energy functional combining alignment potentials (from positives) and entropic dispersion (from negatives).

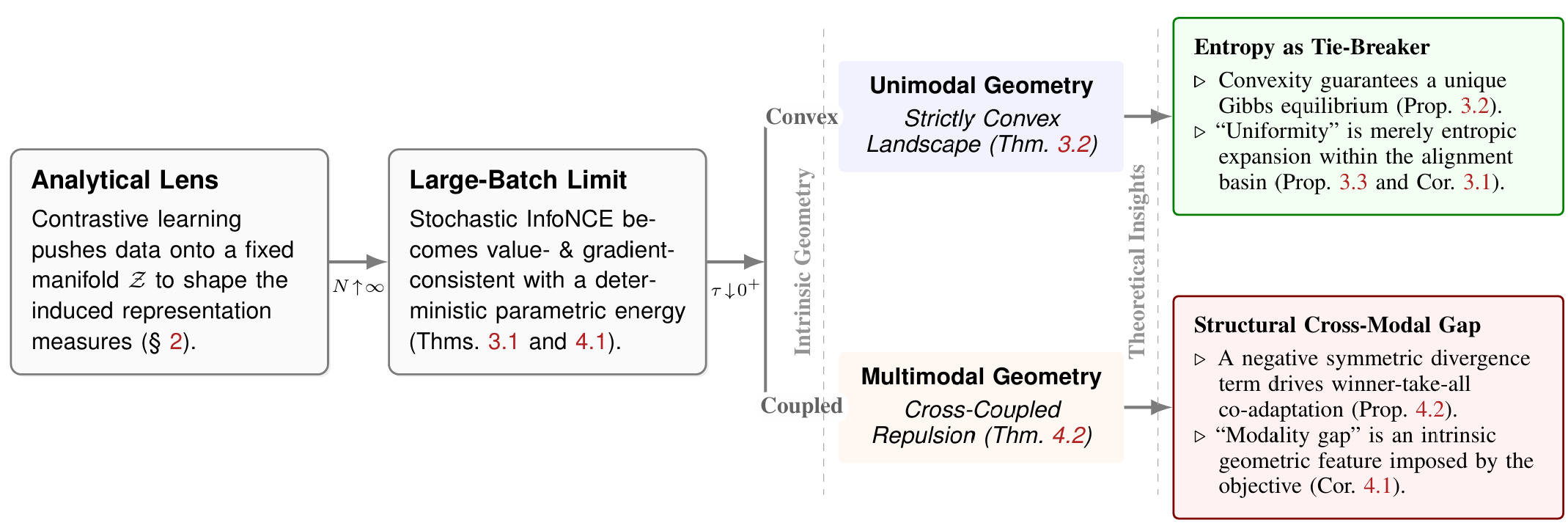

The geometric bifurcation of contrastive representation learning.

Main takeaway: unimodal InfoNCE admits a Gibbs-type equilibrium dictated by a strictly convex intrinsic landscape, whereas symmetric multimodal InfoNCE contains a structural repulsive divergence term that makes exact marginal matching a knife-edge condition.

Numerical Validations

🔬 Mechanism checks: (i) large-batch SGD follows a deterministic InfoNCE energy; (ii) unimodal InfoNCE converges to a unique Gibbs equilibrium; (iii) multimodal InfoNCE exhibits a divergence-driven structural modality gap under heterogeneous conditionals.

Prediction / Claim	Observable Signature	Where
Large-batch consistency	Stochastic gradient aligns with the deterministic energy gradient as batch size grows.	Figures below · App. D.1
Unimodal strict convexity	Single stable equilibrium; low temperature yields concentration near the Gibbs minimizer.	Figures below · App. D.2
Multimodal negative symmetric divergence	Persistent divergence term; exact marginal matching is knife-edge; stable gap under misalignment.	Figures below · App. D.3

1) Large-batch gradient consistency

We compare the stochastic InfoNCE gradient (finite batch) with the deterministic energy gradient predicted by our large-batch limit. As batch size increases, the gradients become increasingly aligned, and the relative error shrinks—supporting value & gradient consistency.

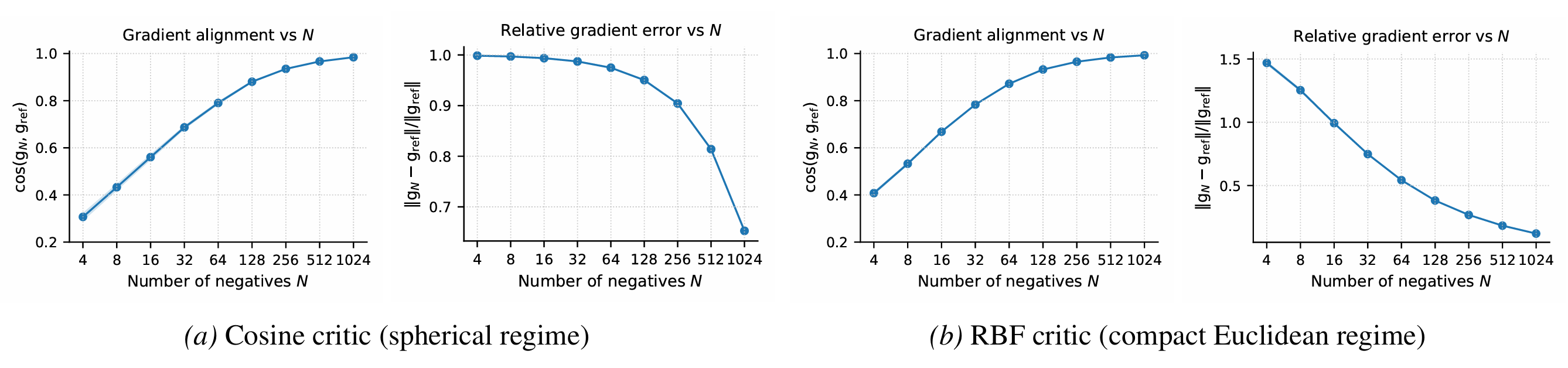

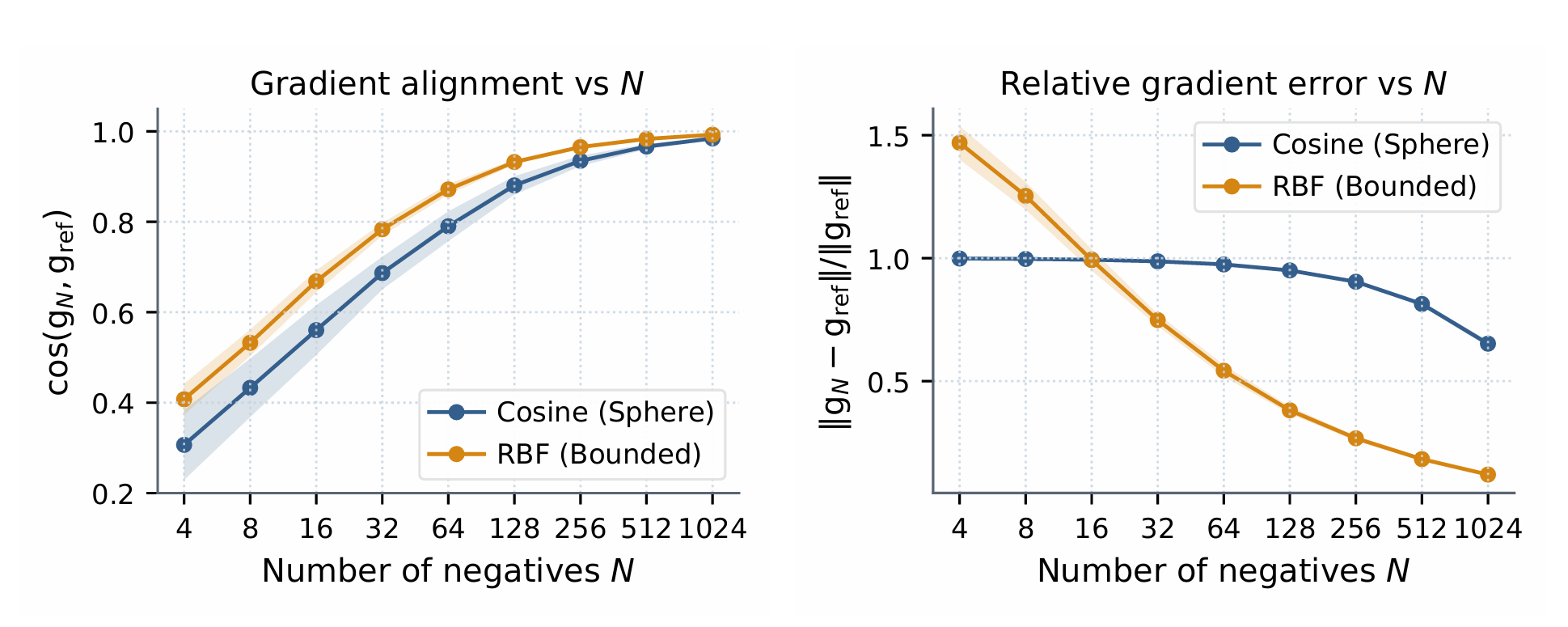

Cosine alignment & Relative gradient error between stochastic and deterministic gradients vs batch size.

What to show: monotone improvement with batch size.
Takeaway: training dynamics are governed by the deterministic energy in the large-batch regime.

2) Unimodal: unique Gibbs equilibrium & low-temperature concentration

In the unimodal regime, the intrinsic functional is strictly convex with a unique stable Gibbs equilibrium. Numerically, trajectories converge to the same terminal law across initializations; decreasing temperature produces sharper concentration inside the alignment basin rather than “uniformity for its own sake”.

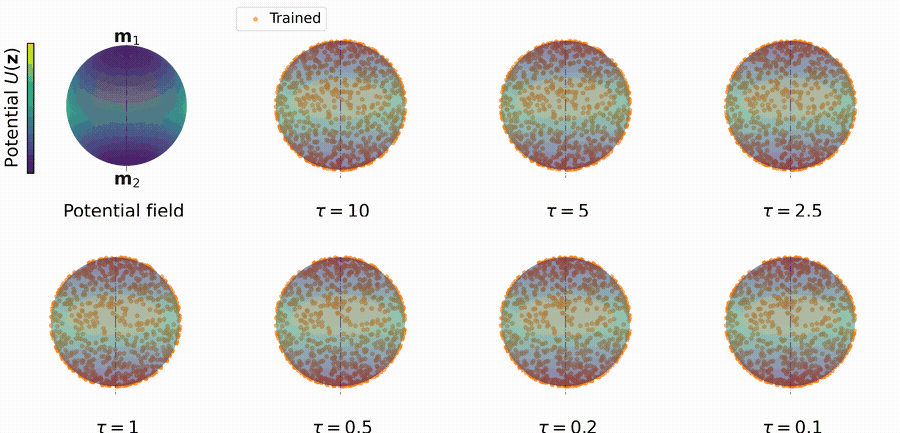

Unimodal hypersphere distribution animation.

What to show: A density visualization under various temperature settings.
Takeaway: unimodal “uniformity” is an entropic tie-breaker constrained by the alignment potential.

3) Multimodal: divergence-driven structural modality gap

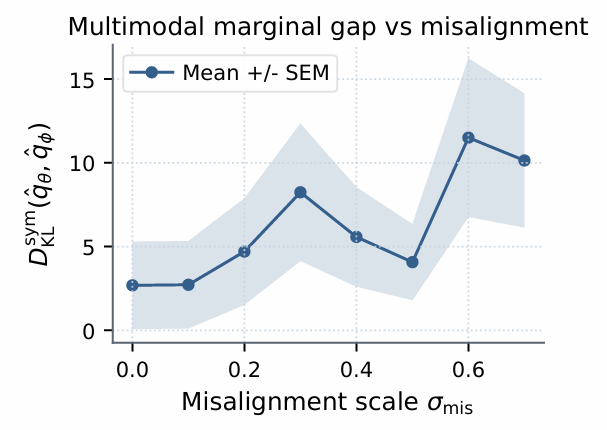

In the multimodal regime with heterogeneous conditionals, the symmetric objective contains a negative symmetric divergence that persists after kernel sharpening. Numerically, this manifests as a stable population-level separation between learned marginals (a “modality gap”) that grows with misalignment and does not vanish with longer training.

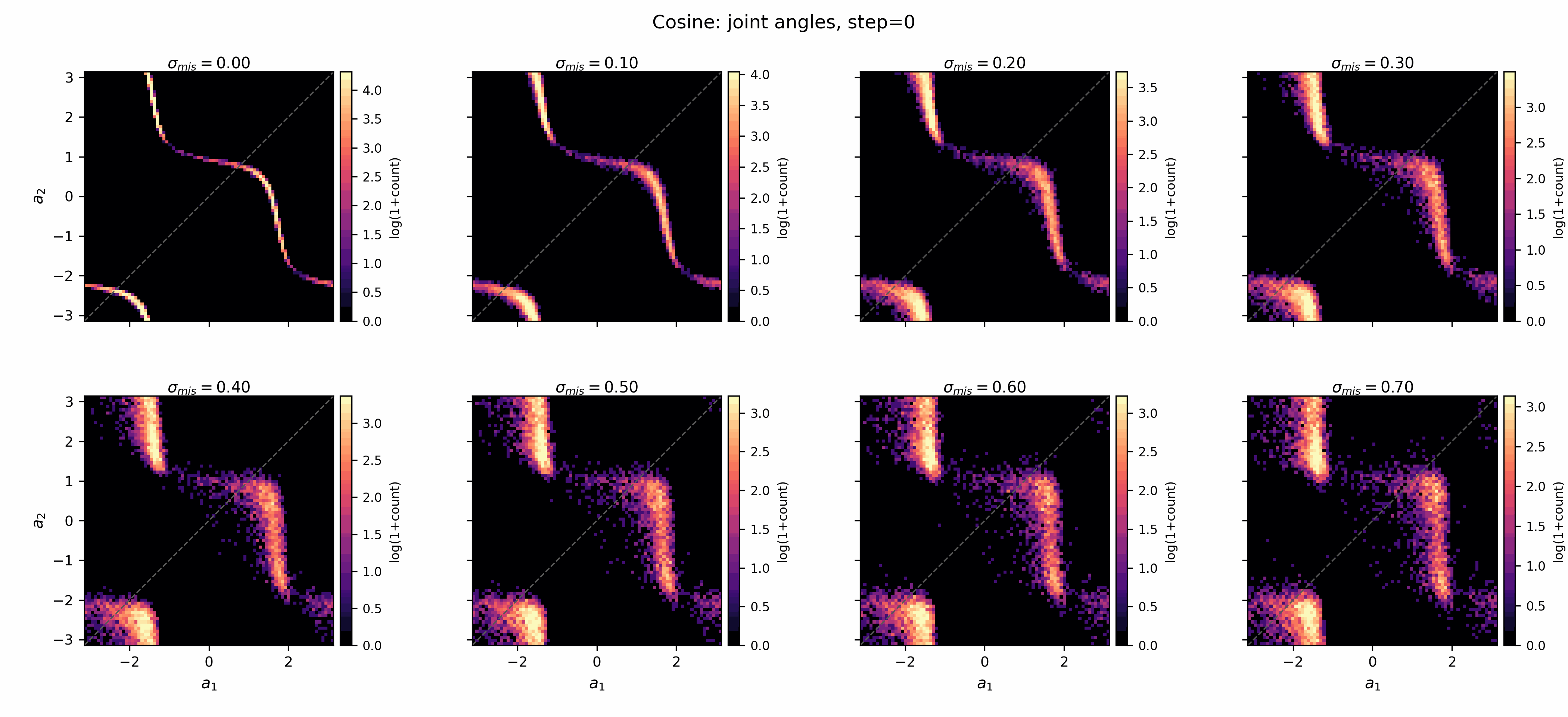

Animated joint-angle coupling during training

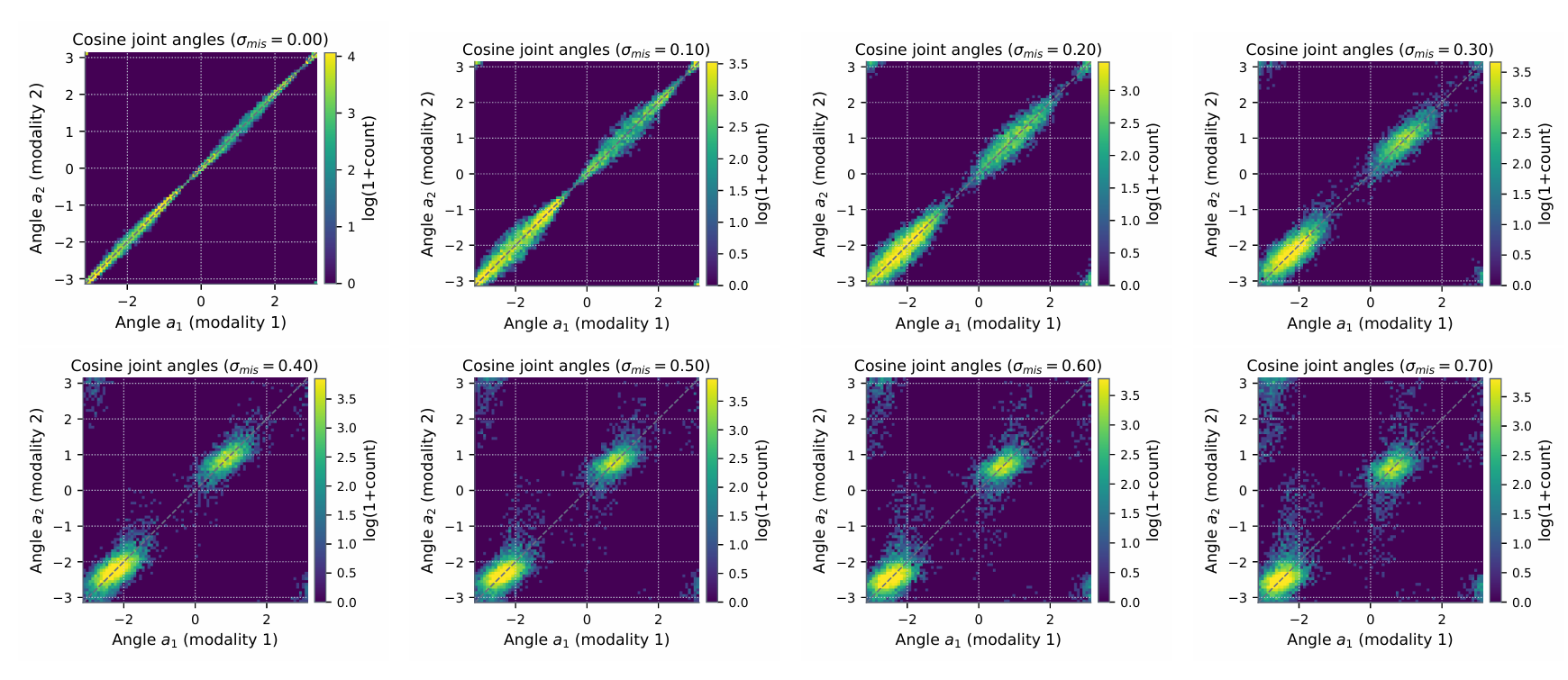

Animated joint-angle coupling (1 frame per 10 steps). The diagonal concentration indicates improved pairwise coupling, while persistent off-diagonal mass reflects mismatch-induced structure that does not disappear with longer training.

What to look for: how the joint mass evolves over training; whether it concentrates on the diagonal; and whether residual spread persists under misalignment.
Takeaway: the modality gap is a structural geometric consequence of symmetric multimodal training under mismatched conditionals.

For full setup details (models, temperatures, batch sizes, seeds), see Appendix D of the paper.

Key Takeaways

📌 Deterministic limit: large-batch InfoNCE tracks an explicit energy landscape.

📌 Unimodal geometry: strict convexity implies a unique stable Gibbs equilibrium; uniformity is secondary entropy within the alignment basin.

📌 Multimodal geometry: a negative symmetric divergence erects a repulsive barrier, making the modality gap an intrinsic geometric state.

📌 Practical implication: closing the gap requires explicitly regularizing cross-modal divergence—not just improving initialization or sampling.

@misc{cai2026geometric, title = {The Geometric Mechanics of Contrastive Representation Learning: Alignment Potentials, Entropic Dispersion, and Cross-Modal Divergence}, author = {Cai, Yichao and Zhang, Zhen and Liu, Yuhang and Shi, Javen Qinfeng}, year = {2026}, eprint = {2601.19597}, archivePrefix= {arXiv}, primaryClass = {cs.LG}, doi = {10.48550/arXiv.2601.19597}, url = {https://arxiv.org/abs/2601.19597} }
